Connecting an audio device

With the multi-CD changer connected, any external audio devices you may have used with your Wave® music system can be connected to the back of the multi-CD changer.

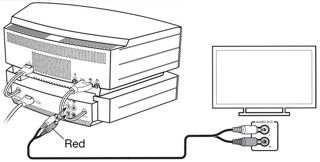

To make such a connection, you'll need a dual RCA stereo cable. The Wave® music system multi-CD changer provides two rear panel inputs (AUX 1 and AUX 2) for external audio devices such as TV, VCR, DVD player, cassette player or MP3 player. This gives you the advantage of hearing Wave® music system sound from a range of sources. To connect a device, connect one end of the cable to the audio output jacks of the source and the other end to one of the AUX inputs on the changer. Be sure to match the red and white plugs on the cable to the red (R) and white (L) AUX jacks on the changer.

Note: Be sure to use only a stereo connection. You will not hear the connected device if just the left (L) or right (R) channel is connected.

Playing a connected audio device

To listen to a connected audio device, follow these steps:

Turn on the external device

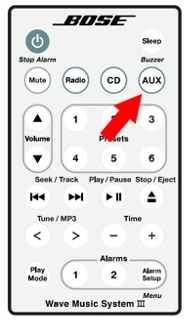

On the Bose® remote, press AUX to selct the source. Press AUX again to switch between the AUX 1 and AUX 2 inputs. "AUX 1" or "AUX 2" appears on the display to confirm your selection

Adjust the volume using the Wave® music system remote control

Note: The Wave® music system remote control cannot turn a connected AUX device on or off, or change its settings or selections. Neither AUX 1 or AUX 2 can be selected as an alarm source.
