Setting up your system

Connecting the Acoustimass® module to the music center

Connect the Acoustimass module to the music center with the audio input cable provided with your system.

  • Insert the small black 8-pin plug (flat side facing up) into the jack marked SPEAKER ZONE 1 located on the back of the music center
  • Insert the right-angle 8-pin plug into the AUDIO INPUT jack on the Acoustimass module
  • Extend the audio input cable as much as possible, since it includes an antenna for the remote control

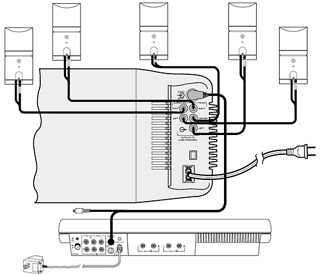

Connecting the cube speaker arrays to the Acoustimass® module

Match the correct speaker cable to the corresponding speaker location:

  • Front speaker cables have blue plugs at one end, with L, R and C molded into the plug housing. The red collars on the positive wire are labeled LEFT, RIGHT and CENTER
  • Surround speaker cables have orange plugs at one end, with L and R molded into the plug housing. The red collars on the positive wire are labeled LEFT and RIGHT

Connect each speaker, matching the red wire (positive) to the red terminal and the black wire (negative) to the black terminal. Make sure to insert only the bare wire into the terminal hole and not the wire casing; this will ensure a proper connection

Match the correct speaker cable to the corresponding speaker location on the Acoustimass module

  • Insert the blue plugs into the matching left front, center and right front jacks
  • Insert the orange plugs into the matching left surround and right surround jacks

Connecting to power

  • Plug the power cord into the AC POWER jack on the Acoustimass module, and to a power outlet
  • Plug the power cord into the AC POWER jack on the Acoustimass module, and to a power outlet
