Using an external antenna

The Acoustic Wave® music system II includes a built-in telescoping FM
antenna. If, after adjusting the position of this antenna, you still experience
poor reception, you may need to use the external FM antenna included with your
system.

To connect the external FM antenna:

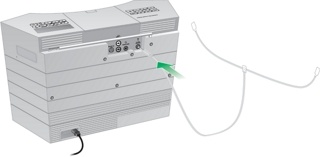

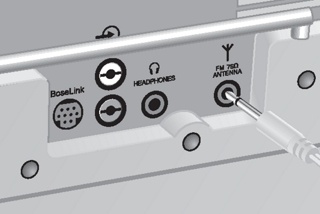

Insert the 1/8-inch (3.5 mm) plug of the FM antenna into the FM 75Ω ANTENNA jack as shown

Extend the ends of the antenna as far from the unit and other external equipment as possible to establish optimum reception
